ML Series Mini Loader |
| |
ML series Mini Loader is used high effect carbon brush motor, small size, suitable 0~250KG/HR low capacity conveying. |
| |
Feature
| 1. |
Small size. |
| 2. |
High static pressure, Low noise. |
| 3. |
Vary easy to install, easy maintains, easy to operation. |
| 4. |
All material contact surface is SUS304 stainless steel. |
| 5. |
Hopper inside 250 mesh polish. |
| 6. |
Auto compress air blow back device. |
| 7. |

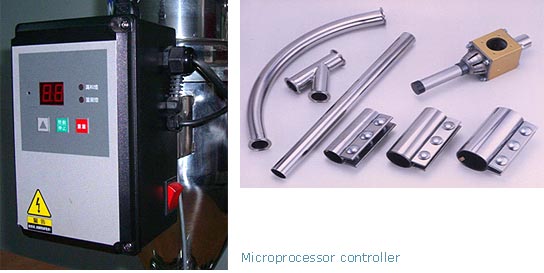

Microprocessor controller and easy operation |
| 8. |
Alarm signaling device for material shortage |
| 9. |
Magnetic level indictor |
|
 |
|
| |
 |
| |
|
| |
Specification |
| |
|
Model
|
ML-3
|
|
|
Motor type
|
Carbon brush
|
Carbon brush
|
Carbon brush
|
|
Motor (KW)
|
1.15
|
1.15
|
1.15
|
|
Material DUCT (mm)
|
38.1
|
38.1
|
38.1
|
|
Capacity (KG/HR)
|
200
|
300
|
400
|
|
Auto clean
|
有
|
有
|
有
|
|
Hopper volume (Liter)
|
3
|
6
|
12
|
|
H (mm)
|
560
|
630
|
750
|
|
W (mm)
|
430
|
450
|
500
|
|
D (mm)
|
400
|
420
|
470
|
|
Weight (KG)
|
13
|
15
|
17.5
|
|
| |
Remark :
All material contact surface is SUS304 stainless steel and 200 mesh polished.
The specification list showing convey capacity is up to material of bulk density 0.65g/cm3, Vertical height 4M, horizontal distance 1M.
Sight glass and level sensor is option.
Buffer hopper is option.
 |
| |
|
|
|
VP Series Vacuum Conveying System |
| |

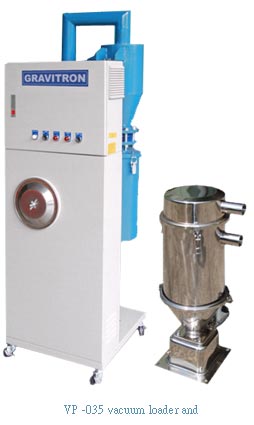

VP series vacuum convey system include one unit vacuum loader and one (or more) unit vacuum chamber. VP series suitable for long distance convey, large
capacity convey, multi-station convey. |
| |
Features
| 1. |
VP series can be suitable all kind of plastic materials conveying. |
| 2. |
High static pressure suitable for long distance convey. |
| 3. |
One vacuum power unit can manipulate more than 2 sets of vacuum chamber. |
| 4. |
SUS304 stainless steel for material contact surface . |
| 5. |
The Vacuum chamber interior is 250 mesh polished. |
| 6. |

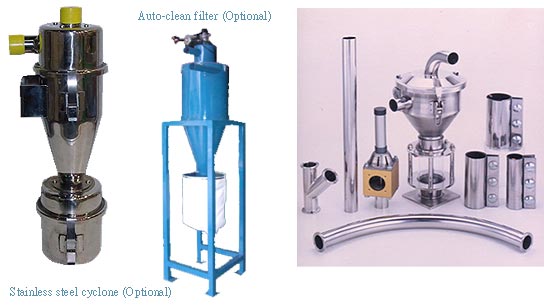

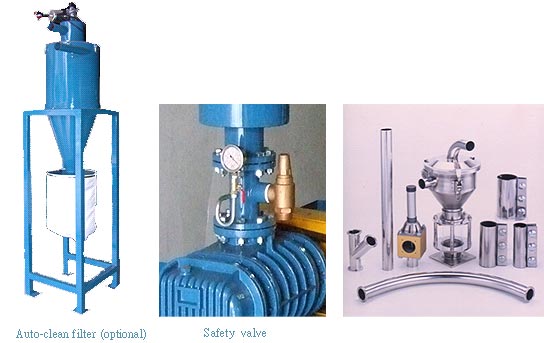

Stainless steel cyclone, Auto-clean filter is optional. |
| 7. |
Micro-processor control. |
| 8. |
Easy clean design. |
| 9. |
Control error alarms. |
|
 |
|
| |
 |
| |
|
| |
Specifications |
| |
|
Model
|
VP-010
|
VP-020
|
VP-035
|
VP-050
|
VP-075
|
VP-100
|
VP-150
|
|
Motor (KW)
|
0.75
|
1.5
|
2.63
|
3.75
|
5.63
|
7.5
|
11.25
|
|
Material DUCT (mm)
|
38.1
|
38.1
|
50.8
|
50.8
|
63.5
|
63.5
|
76.2
|
|
Air DUCT (mm)
|
38.1
|
38.1
|
50.8
|
50.8
|
63.5
|
63.5
|
76.2
|
|
Capacity (KG/HR)
|
300
|
500
|
750
|
1000
|
1200
|
1600
|
2000
|
|
Vacuum chamber (Liter)
|
6L
|
15L
|
30L
|
30L
|
30L
|
30L/45L
|
30L/45L
|
|
filter
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
cyclone
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
H (mm)
|
1250
|
1250
|
1250
|
1650
|
1650
|
1850
|
1850
|
|
W (mm)
|
550
|
550
|
550
|
550
|
550
|
550
|
550
|
|
D (mm)
|
500
|
500
|
500
|
420
|
800
|
800
|
800
|
|
Weight (KG)
|
39
|
46
|
65
|
70
|
105
|
120
|
225
|
|
| |
Remark:
-
Filter element is standard specification.
- Carbon steel Cyclone is standard specification.
- The specification list showing convey capacity is up to material of bulk density 0.65g/cm3
- Before you choose vacuum conveying system, please advice your capacity inquiry, horizontal distance, vertical distance, material
type, bulk density.
- Stainless steel cyclone is option.
- Powder / Flake vacuum chamber is option.
- Auto-clean filter is option.
|
 |
|
| |
|
| |
Vacuum chamber specifications |
| |
|
Model
|
VH-006
|
VH-15
|
VH-030
|
VH-045
|
|
Volume (Liter)
|
6
|
15
|
30
|
3.7545
|
|
Material DUCT (mm)
|
38.1
|
38.1
|
50.8/63.5
|
63.5/76.2
|
|
Air DUCT (mm)
|
38.1
|
38.1
|
50.8/63.5
|
63.5/76.2
|
|
Construct material
|
Stainless steel
|
Stainless steel
|
Stainless steel
|
Stainless steel
|
|
interior polish
|
250 mesh
|
250 mesh
|
250 mesh
|
250 mesh
|
|
H 1(mm)
|
490
|
660
|
820
|
950
|
|
W1 (mm)
|
290
|
360
|
480
|
480
|
|
D 1(∮mm)
|
230
|
300
|
420
|
420
|
|
W2 (mm)
|
210
|
210
|
210
|
210
|
|
W3 (mm) Mounting hole
|
150
|
150
|
150
|
150
|
|
Weight (KG)
|
6
|
11
|
17
|
22
|
|
| |
 |
Remark :
-
VH series vacuum chamber is all stainless steel product, interior 250 mesh polished.
- Before you choose vacuum conveying system, please advice your capacity inquiry, horizontal distance, vertical distance, material
type, bulk density.
- Powder / Flake vacuum hopper is different to standard type. It is required a filter inside the chamber and additional compressed
air and auto blow system.
- VH-030，VH-045 material DUCT and air DUCT have to match Vacuum power unit’s specification.
- If your vacuum chamber require special connecting flange, please advice before order.
|
|
|
|

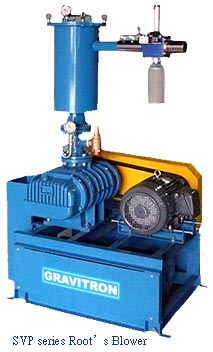

SVP Series Root's blower |
| |
Super Vacuum Power (SVP) series root’s blower is suitable for long distance convey, large capacity convey, multi-station conveying. |
| |
Features:
| 1. |
High static pressure ，pressure is up to ±5000mmAq. |
| 2. |
SVP series is suitable for 50~200 Meters long distance convey. |
| 3. |
Computerized CNC machines are used to produce high quality and precision components and parts. |
| 4. |
Low noise, low vibration. |
| 5. |
Special rotor element design for low air pulsation, air flow stable and even. Reduce vibration and noise, saving energy. |
|
 |
|
| |
 |
| |
|
| |
Specifications |
| |
|
Model
|
SVP-050
|
SVP-075
|
SVP-100
|
SVP-150
|
SVP-200
|
SVP-300
|
|
Motor (KW)
|
3.75
|
5.625
|
7.5
|
11.25
|
15
|
22.5
|
|
Air outlet DUCT (mm)
|
50.8/76.2
|
50.8/76.2
|
50.8/76.2
|
50.8/76.2
|
76.2/101.6
|
76.2/101.6
|
|
Air inlet DUCT (mm)
|
50.8/76.2
|
50.8/76.2
|
50.8/76.2
|
50.8/76.2
|
76.2/101.6
|
76.2/101.6
|
|
Air flow (m3/min)
|
2.55
|
3.61
|
7.23
|
10.4
|
13.6
|
22.7
|
|
Rotor speed (R.P.M.)
|
1150
|
1150
|
1150
|
1150
|
1150
|
1150
|
|
pressure (±mmAq)
|
4000
|
4000
|
4000
|
4000
|
4000
|
4000
|
|
Cyclone
|
option
|
option
|
option
|
option
|
option
|
option
|
|
H (mm)
|
955
|
955
|
1380
|
1380
|
1395
|
1850
|
|
W (mm)
|
900
|
900
|
1100
|
1100
|
1400
|
1700
|
|
D (mm)
|
470
|
470
|
600
|
600
|
600
|
950
|
|
Weight (KG)
|
165
|
179
|
321
|
351
|
399
|
625
|
|
| |
 |
| |
|
| |
|
| |
|
