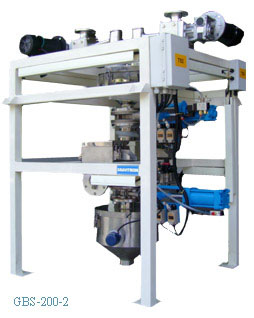

GBS Series Gravimetric Batch Blender
|
| |
Features
| 1. |
±0.1% Blend Accuracy (No noise, vibration) |
| 2. |
Positive displacement reverse auger mixing gives superior uniform and no separation. |
| 3. |
Touch panel console. |
| 4. |
SUS304 stainless steel of material contact surface. |
| 5. |
Quick cleaning features for rapid job changes. |
| 6. |
Control error alarm. |
| 7. |
Incorporates up to 6 components. 2 slide fed and 4 auger fed depending on model. |
 |
 |
|
| |
|
| |
Specifications |
| |
|
Model
|
MGB-050
|
GBS-200
|
GBS-400
|
GBS-800
|
GBS-2000
|
|
Capacity (KG/HR)
|
50
|
200
|
400
|
800
|
2000
|
|
Components
|
2,3,4
|
2,3,4
|
2,3,4
|
2,3,4,5,6
|
2,3,4,5,6
|
|
Material temperature
|
80°C
|
80°C
|
80°C
|
80°C
|
80°C
|
|
H (mm)
|
900
|
1100
|
1400
|
1700
|
2300
|
|
W (mm)
|
520
|
850
|
1100
|
1200
|
1200
|
|
D (mm)
|
500
|
700
|
900
|
920
|
1200
|
|
Weight (KG)
|
150
|
180
|
280
|
300
|
420
|
|
| |
Remarks:
Standard Power supply is 220V/3P/60Hz. If need another specification, please advice before order.
Vibration, Noise, Dry air flow, Compress Air or N2 pressure, will influence dosing accuracy.
 |
| |
|
|
|
GBS-H Series High Temperature Blender |
| |
Features
| 1. |
±0.1% Accuracy (No noise, vibration) |
| 2. |
Positive displacement reverse auger mixing gives superior uniform and no separation. |
| 3. |
Touch panel console. |
| 4. |
The load cell is overload protected and provides measurement accuracy independent of temperature change. |
| 5. |
Retains heat inside the blender and resists moisture contamination |
| 6. |
Operates down-stream of conventional dryers and allows high accuracy blending of dried materials at temperatures up to 170C. |
| 7. |
Incorporates up to 6 components. 2 slide fed and 4 auger fed depending on model. |
|
 |
|
| |
|
| |
Specifications: |
| |
|
Model
|
MGB-050-H
|
GBS-200-H
|
GBS-400-H
|
GBS-800-H
|
GBS-1000-H
|
GBS-2000-H
|
Capacity
(KG/HR) |
50 |
200 |
400 |
800 |
1000 |
2000 |
| Components |
2,3,4 |
2,3,4 |
2,3,4 |
2,3,4,5,6 |
2,3,4,5,6 |
2,3,4,5,6 |
| Material temperature |
170°C |
170°C |
170°C |
170°C |
170°C |
170°C |
| H (mm) |
1400 |
1980 |
2035 |
2430 |
2800 |
330 |
| W1 (mm) |
900 |
900 |
900 |
1000 |
1200 |
1200 |
| W2 (mm) |
900 |
1200 |
1600 |
1600 |
1600 |
1600 |
| D (mm) |
900 |
900 |
1000 |
1000 |
1200 |
1200 |
| Weight (KG) |
285 |
300 |
350 |
350 |
385 |
450 |
|
| |
Remarks :
Standard Power supply is 220V/3P/60Hz. If other specifications required, please advice before order.
Vibration, Noise, Dryer air flow, Compressed air or N2 pressure, will influence dosing accuracy.
 |
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
