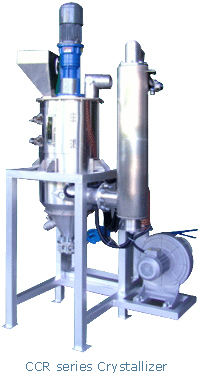

CCR series PET Crystallizer
|
| |
CCR series Continuous PET Crystallizer System is suitable for amorphous PET and PLA materials’ (including recycled chip & flake) crystallizing process. The crystallized PET or PLA materials can be used under high temperature for drying. High efficiency equipment, save drying time and energy saving.
Feature
|
1.
|
CCR Crystallizer provides efficient conversion amorphous materials (PET or PLA) into crystallized form for further processing.
Reduce the purchase cost of raw materials.
|
|
2.
|
Eliminate many problems of PET / PLA recycled material (chip & flake) can not suffer high temperature drying. Saving material
drying times and energy.
|
|
3.
|
Improve recycled PET / PLA materials' drying efficiency.
|
| 4. |
The crystallized PET material can be used over 120℃ drying temperature. Good drying will prevent PET’s viscosity( I.V.) reduction.
Recycled material’s percentage can be increased for production and will not affect the final product’s quality. |
| 5. |
P.I.D. temperature controls for accurate and stable temperature.
|
| 6. |
Equipment error alarms.
|
| 7. |
Over temperature protection device |
| 8. |
Direct drive type Agitator. |
|
 |
|
| |
|
| |
|
Specifications
|
|
Model
|
CCR-050
|
CCR-150
|
CCR-300
|
CCR-500
|
CCR-750
|
CCR-1000
|
| Hopper Capacity (Liter) |
50 |
150 |
300 |
500 |
750 |
1000 |
| Through put (KG/HR) |
30 |
100 |
200 |
300 |
500 |
650 |
| Heater ((KW) |
6 |
9 |
18 |
27 |
36 |
45 |
| Blower(KW) |
0.5 |
0.85 |
1.9 |
2.6 |
3.7 |
6.3 |
| Agitator motor (mm) |
0.75 |
0.75 |
0.75 |
1.5 |
2.25 |
3.75 |
| Air DUCT (∮mm) |
50.8 |
50.8 |
50.8 |
76.2 |
76.2 |
101.6 |
| H(mm) |
1870 |
2470 |
2570 |
2770 |
2850 |
3150 |
| W(mm) |
470 |
470 |
620 |
720 |
1000 |
1000 |
| D(mm) |
450 |
450 |
600 |
700 |
960 |
960 |
| Weight |
200 |
250 |
300 |
350 |
400 |
550 |
|
Remark
Standard Power supply is 220V/3P/60Hz. If another specifications required, please advice before order.
Standard process temperature is 120℃. Process temperature over 120℃ is optional.
Capacity calculation base on material bulk density 0.65g/cm3.
|
|
| |
|
| |
Options
|
1.
|
Touch Panel
|
|
2.
|
Close looped energy saving system. (cyclone filter required)
|
|
3.
|
Inverter control for agitator speed
|
|
4.
|
Cyclone filter
|
|
5.
|
Auto-clean filter
|
|
6.
|
Plasticizer Filter |
| 7. |
Rotary Valve ( Model CCR-500, 750, 1000)
|
| 8. |
Screw feeder ( Model CCR-50, 150, 300)
|
|
 |
|
| |
|
| |
|
