GRAVITRON
Loss In Weight Feeders
|
| |
 |
| |
|
| |
GRAVITRON LIW Series Loss In Weight Feeder
|
| |
 |
| |
|
| |
Feature
|
| |
|
1.
|
LIW Series Loss In Weight feeder , high quality, high accuracy, low price.
|
|
2.
|
Used ''MU Group'' MUC-175 Loss In Weight controller, 100% made in Japan, feeding accuracy higher than ±0.5%. |
|
3.
|

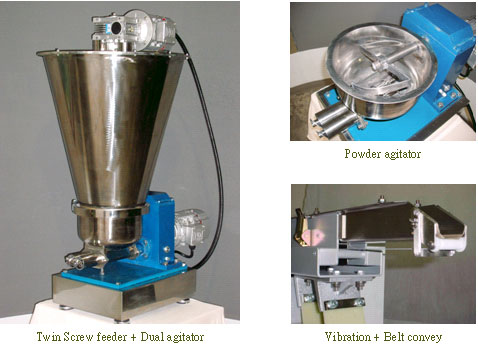

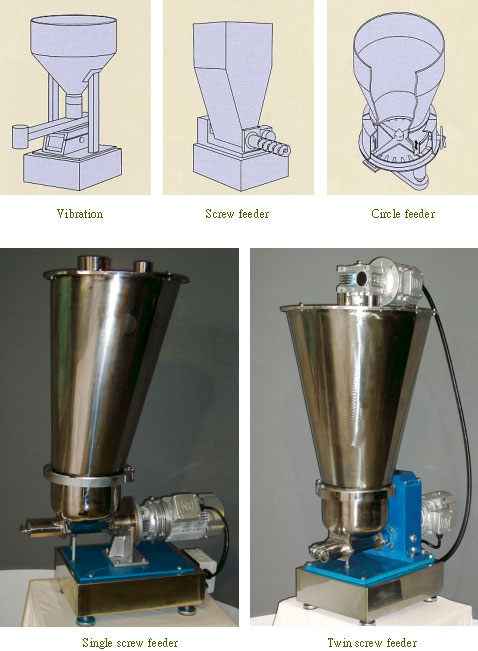

According to different materials, user can choose different type of feeders. Like Vibration type, Single Screw type, Twin screw type or Circle feeder type. |
|
4.
|
Auto P.I.D. calculation, or user can manual setting individually. |
|
5.
|
24 bit signal transfer. |
|
| |
|
| |
Options |
| |
| 1. |
A/D board can accept 0~10V or 4~20mA signals from extruder screw rotation sensor. |
| 2. |
Feeding rate will proportional to the extruder screw rotation speed. |
| 3. |
D/A board, 0~10V or4~20mA signals output. |
| 4. |
PC display program. |
|
| |
|
| |
Specifications
|
| |
 |
| |
|
| |
|
Model
|
Feeding range
|
Hopper capacity
|
Refill
|
Feeder Type
|
|
LIW-010
|
2~10 KG/HR
|
6 公升
|
1~3 times/ HR
|
S，T，V，VB，C
|
|
LIW-050
|
10~50 KG/HR
|
20 公升
|
1~4 times/ HR
|
S，T，V，VB，C
|
|
LIW-100
|
30~100 KG/HR
|
45 公升
|
1~4 times/ HR
|
S，T，V，VB，C
|
|
LIW-300
|
100~300 KG/HR
|
90 公升
|
2~6 times/ HR
|
S，T，V，C
|
|
LIW-500
|
150~500 KG/HR
|
120 公升
|
2~6 times/ HR
|
S，V，C
|
|
| |
Remark:
S: Single screw feeding type
T: Twin screw feeding type
V: Vibration feeding type
VB: Vibration + Belt convey feeding type
C: Circle Feeding type
|
| |
|
| |
|
| |
|
