Features特色
|
Benefits優勢
|
|
·
|
製造材質有一般型(鋁披覆材質)、高溫、抗腐蝕型(不鏽鋼材質)。
|
|
·
|
Air Conveyors - Ring-Vac真空產生器尺寸有：1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 2" (51mm), 2-1/2" (64mm), and 3" (76mm)
sizes。特殊尺寸可訂製。
|
|
·
|
可運用壓縮空氣壓力調整控制流量。
|
|
·
|
無可移動元件，無需電力驅動，適用於防爆級製程。
|
|
|
·
|
即使在惡劣環境下，依然較傳統風車有更長的壽命。
|
|
·
|
使用操作簡單。
|
|
·
|
可以簡單、輕易的控制流量。
|
|
·
|
無維護費用
|
|
|
| |
|
| |
|
|
Air Conveyors - Ring-VacTM
真空產生器的應用
|
| |
|
真空產生器，可以取代昂貴的風車系統，節省成本；尤其是對於需要間歇性真空的製程，能節省更多費用。
|
| |
| |
|
|
|
| |
 |
汽車工業:
可以運用在原料輸送方面，以及工作機台上碎屑的移除
|
|
製瓶業:
運用於裝瓶線上瓶蓋運送。
|
|
食品業:
運用於容器運送；食品原料運送；食品裝填；食品容器中異物吸出。
|
|
一般產業:
可以運用在原料輸送方面，以及工作機台上碎屑的移除。可取代傳統風車系統，節省成本。
|
|
造紙業:
可運用於製程中碎屑，粉塵的移除
|
|
橡塑膠業:
可運用於製程中碎屑，粉塵的移除，原料輸送，射出機料頭回收。
|
|
印刷業:
可運用於製程中碎屑，粉塵的移除。
|
|
醫藥業:
藥丸、容器、藥片運送。
|
|
紡織業:
廢絲，線頭回收
|
|
| |
|
| |
|
| |
Air Conveyors - Ring-VacTM Dimensions
|
| |
|
PART
NO.
(Aluminum &
high temperature
stainless steel)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L*
|
|
Model
30001,
30001S, 30001T,
30001TS
|
1.00
25.4
|
1.38
35.1
|
1.25
31.8
|
5.00
127
|
2.25
57.2
|
2.38
60.3
|
2.38
60.3
|
0.78
19.7
|
0.38
9.5
|
0.94
23.8
|
1.75
44.5
|
1/4 NPT
|
|
Model
30002,
30002S, 30002T,
30002TS
|
1.25
31.8
|
1.38
35.1
|
1.25
31.8
|
5.0
127
|
2.5
63.5
|
1.00
25.4
|
2.38
60.3
|
0.78
19.7
|
0.38
9.5
|
0.94
23.8
|
1.75
44.5
|
1/4 NPT
|
|
Model
30003,
30003S, 30003T,
30003TS
|
1.50
38.1
|
1.38
35.1
|
1.25
31.8
|
5.0
127
|
2.75
69.9
|
1.25
38.1
|
2.38
60.3
|
0.78
19.7
|
0.38
9.5
|
0.94
23.8
|
1.75
44.5
|
3/8 NPT
|
|
Model
30004,
30004S, 30004T,
30004TS
|
2.0
51.8
|
1.38
35.1
|
1.25
31.8
|
5.0
127
|
3.25
82.6
|
1.75
44.5
|
2.38
60.3
|
0.78
19.7
|
0.38
9.5
|
0.94
23.8
|
1.75
44.5
|
3/8 NPT
|
|
Model
30005
|
2.5
64.0
|
1.38
35.1
|
1.25
31.8
|
5.0
127
|
3.75
95.0
|
2.25
57.2
|
2.56
65.0
|
0.78
19.7
|
0.38
9.5
|
0.94
23.8
|
1.75
44.5
|
3/8 NPT
|
|
Model
30006
|
3.0
76.0
|
1.38
35.1
|
1.25
31.8
|
5.5
140
|
4.25
108
|
2.75
69.9
|
2.76
70.0
|
0.78
19.7
|
0.38
9.5
|
0.94
23.8
|
1.75
44.5
|
3/8 NPT
|
|
| |
* BSP adaptors supplied upon request free of charge.
|
| |
|
| |
|
| |

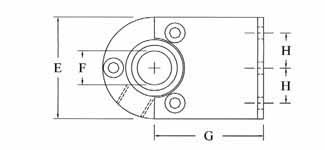

Top View
|
| |
Series 30001 - 30004
(Aluminum)
Series 30001 - 30004
(Stainless Steel)
|
Series 30001T - 30004T
(Threaded Aluminum)
Series 30001TS - 30004TS
(Threaded Stainless Steel)
|
|
| |
 |
 |
|
Side View
|
Side View
|
|
| |
|
| |
|
| |
Air Conveyors - Ring-VacTM Performance
|
| |
|
MODEL
|
Size
Outside Diameterinches (mm)
|
Air
ConsumptionSCFM at 80 PSIG(SLDP
at 5.5 BAR)
|
Vacuuminches
H2O (KPG)
|
|
30001/30001S/30001T/30001TS
|
1" (25mm)
|
15 (415)
|
-42 (-11)
|
|
30002/30002S/30002T/30002TS
|
1 1/4 " (32mm)
|
26 (730)
|
-42 (-11)
|
|
30003/30003S/30003T/30003TS
|
1 1/2 " (38mm)
|
33 (932)
|
-36 (-9)
|
|
30004/30004S/30004T/30004TS
|
2" (51mm)
|
45 (1270)
|
-28 (-7)
|
|
30005/30005S/30005T/30005TS
|
2 1/2 " (64mm)
|
58 (1650)
|
-23 (-6)
|
|
30006/30006S/30006T/30006TS
|
3" (70mm)
|
68 (1935)
|
-14.5 (-4)
|
|
| |
|
| |
Air Conveyors - Ring-VacTM Specifications
|
| |
製造材質有一般型(鋁披覆材質)、高溫、抗腐蝕型(不鏽鋼材質)。
|
| |
|
| |
Note:
All our stainless steel high temperature Ring-Vac units are rated to 1200°F (649°C)
|
| |
|
所有不鏽鋼材質均為高溫型，
可耐溫至1200°F (649°C)
Outside Diameter
(Dimension "A" Hose Diameter)
|
Model
Number
|
Material
of Construction
|
|
1"
|
30001
|
Aluminum
|
|
1-1/4"
|
30002
|
Aluminum
|
|
1-1/2"
|
30003
|
Aluminum
|
|
2"
|
30004
|
Aluminum
|
|
2-1/2"
|
30005
|
Aluminum
|
|
3"
|
30006
|
Aluminum
|
|
|
|
|
|
1"
|
30001S
|
high temperature stainless steel
|
|
1-1/4"
|
30002S
|
high temperature stainless steel
|
|
1-1/2"
|
30003S
|
high temperature stainless steel
|
|
2"
|
30004S
|
high temperature stainless steel
|
|
|
|
|
|
1" NPT
|
30001T (Threaded)
|
Aluminum
|
|
1-1/4" NPT
|
30002T (Threaded)
|
Aluminum
|
|
1-1/2" NPT
|
30003T (Threaded)
|
Aluminum
|
|
2" NPT
|
30004T (Threaded)
|
Aluminum
|
|
|
|
|
|
1" NPT
|
30001TS (Threaded)
|
high temperature stainless steel
|
|
1-1/4" NPT
|
30002TS (Threaded)
|
high temperature stainless steel
|
|
1-1/2" NPT
|
30003TS (Threaded)
|
high temperature stainless steel
|
|
2" NPT
|
30004TS (Threaded)
|
high temperature stainless steel
|
|
